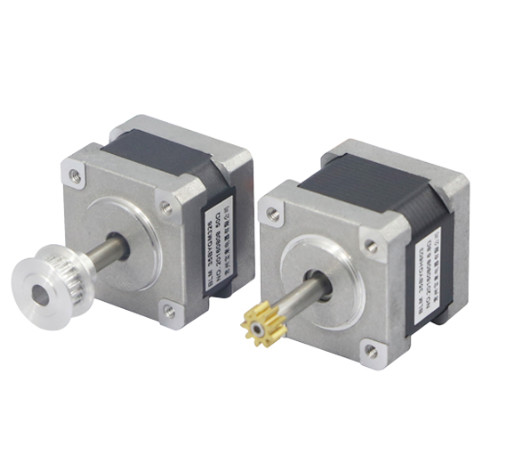

Nema14 HJ hybrid stepper motors 1.8 Sewing Machine
1.Product Applications:
Medical equipment,Printer,Scanner,
Sewing machine,Monitoing Equipment,Robot,and so on.
2.Product Features:
(1). Position error correction and never lose steps
(2). Quick response and perfect acceleration, high torque at high speed
(3). Automatic current adjustment based on load, lower temperature rising
(4). Over-current, over-voltage and position ultra difference protection function
(5). Pulse response frequency can reach 200KHZ
(6). 16 kinds microsteps choice, highest 51200 microsteps/rev.
(7). Voltage range:DC20V~80V, DC30V~110V
3.Product Specification:
| Model | stepping angle | fuselage | current | resistance | inductangce | Static moment | Positioning torque | The monment of inertia |
| HJ60BYGH45-2504 | 1.8 | 45 | 2.5 | 1 | 2.2 | 0.85 | 3 | 200 |
| HJ60BYGH56-2504 | 1.8 | 56 | 2.5 | 1.3 | 4.2 | 1.6 | 4 | 350 |
| HJ60BYGH56-4204 | 1.8 | 56 | 4.2 | 0.4 | 1.2 | 1.6 | 4 | 350 |
| HJ60BYGH65-3004 | 1.8 | 65 | 3 | 0.8 | 2.3 | 1.8 | 5 | 450 |
| HJ60BYGH65-4204 | 1.8 | 65 | 4.2 | 0.55 | 1.2 | 1.8 | 5 | 450 |
| HJ60BYGH76-2504 | 1.8 | 76 | 2.5 | 1.8 | 6.5 | 2.2 | 7 | 550 |
| HJ60BYGH76-3004 | 1.8 | 76 | 3 | 1 | 3.5 | 2.2 | 7 | 550 |
| HJ60BYGH76-4204 | 1.8 | 76 | 4.2 | 0.6 | 1.8 | 2.2 | 7 | 550 |
| HJ60BYGH89-3004 | 1.8 | 89 | 3 | 1.4 | 5.5 | 2.6 | 12 | 780 |
| HJ60BYGH89-4204 | 1.8 | 89 | 4.2 | 0.7 | 2.8 | 2.6 | 12 | 780 |
| HJ60BYGH100-4204 | 1.8 | 100 | 4.2 | 0.7 | 3 | 3 | 16 | 900 |
| HJ60BYGH112-4204 | 1.8 | 112 | 4.2 | 0.85 | 3.5 | 3.6 | 16 | 900 |
4.Packaging & Delivery:
| Packaging Details: | 80 UNITS EACH CARTON |
| Port: | Shanghai or Ningbo |
| Lead Time: | Quantity(Units) | 1 - 10000 | >10000 |
| Est. Time(days) | 25 | To be negotiated |
5.FAQ:
1. Q: How to choose the suitable stepper motor?
A: There are serveral important items: size, length of stepper motor, holding torque,
voltage, current etc.After confirm some them and told us, we can send you the suitable one.
2. Q: Any other methods to finalize the model?
A: Sure, you can send us the model you are using, we can hep you find out the most suitable one.
3.Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
4.Q:What's your warranty terms?
A:One-year warranty and lifelong repair.
6.Company introduction:
Founded in 2009, Changzhou Hejie Motors Co., Ltd. is a professional manufacturer and exporter that is concerned
with the design, development and production and sales of motors. We are located in Changzhou, Jiangsu Province, with convenient transportation access.Our company has always been committed to the design and manufacturing of the motors for over ten years , and now has a number of invention patents and utility model patents. Our company mainly engages in research and development of different motors, including the series stepping motor, the series Brushless DC motor, AC/DC servo motor. All of our products are greatly appreciated in a variety of
different markets throughout the country, and even exports to more than ten foreign countries and regions.
Our products have passed CE and ROHS certification, and the company has passed ISO9001 total quality management system certification.The products are widely applied to carved machine, embroidery machine, industrial robots, robots, unmanned aerial vehicle (uav), CNC machine tools, digital printing, computer flat knitting machine, 3 d printing, packaging machinery, industrial printers, medical equipment, new energy vehicles and other automation control and automation system equipment.
